紅外透射可見吸收玻璃
- 簡介： 紅外透射可見吸收玻璃....
祥細介紹
紅外透射可見吸收玻璃特性(Infrared Glass Characteristic)
|
牌號 Type |
厚度 Thickness |
A[2856K] | D65 |
化學穩定性 Chemical Stability |
ND | α×10-7(/℃) |
Tg (℃) |
Ts (℃) |
S | |||||
| x | y | Y | x | y | Y | DA | DW | |||||||
| HB780 | 3 | 5 | 4 | 1.532 | 111 | 534 | 592 | 2.77 | ||||||
| HB800 | 3 | 5 | 4 | 1.520 | 98 | 559 | 615 | 3.05 | ||||||
| HB830 | 3 | 5 | 4 | 1.520 | 98 | 559 | 615 | 3.05 | ||||||
| HB850 | 3 | 5 | 4 | 1.520 | 98 | 559 | 615 | 3.05 | ||||||
技術要求(Technical Indexes)
|
牌 號 Type |
厚 度 Thickness |
λtj(nm) | λ0(nm) | Tλ0(%) | K |
| HB780 | 3 | 780±10 | 900 | ≥83.6 | ≥0.5 |
| HB800 | 3 | 800±10 | 900 | ≥83.6 | ≥0.5 |
| HB830 | 3 | 830±10 | 930 | ≥83.6 | ≥0.5 |
| HB850 | 3 | 850±10 | 950 | ≥80.0 | ≥0.5 |
汽泡、條紋、應力類級別(Class Of Bubble、Stripe、Stress)
|
牌 號 Type |
氣 泡 Bubble |
條 紋 Stripe |
應 力 Stress |
| HB780 | C-B | 3C | 3 |
| HB800 | C-B | 3C | 3 |
| HB830 | C-B | 3C | 3 |
| HB850 | C-B | 3C | 3 |

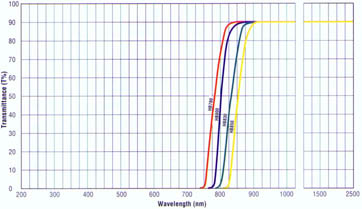

特性曲線圖(Wavelength)
